Warning signs Work signs Signs warning Construction signs Warning sign
(Sign pattern is Department of Highway/Ministry of Transport standard)
Warning signs can be classified in 3 different classes :
- Warning sign which displays symbol
- Warning sign which displays message and/or symbol
- Construction warning sign
Standard sizes of the warning signs 2-1 to 2-60/1, 2-62 and 2-75 are 60 x 60, 75 x 75 and 90 x 90 centimeter.
2-1
“Left Curve”
2-2
“Right Curve”
2-3
“Sharp Left Turn”
2-4
“Sharp Right Turn”
2-5
“Left Reverse Curves”
2-6
“Right Reverse Curves”
2-7
“Left Reverse Turns”
2-8
“Right Reverse Turns”
2-9
“Left Winding Road”
2-10
“Right Winding Road”
2-11
“Crossroad”
2-12
“Y-Symbol Intersection”
2-13
“Side Road Junction sign”
2-14
“Side Road Junction sign”
2-15
“Staggered junction sign”
2-16
“Staggered junction sign”
2-17
“Angle Side Road Left”
2-18
“Angle Side Road Right”
2-19
“Left Angle Side Road”
2-20
“Right Angle Side Road”
2-21
“Roundabout”
2-22
“narrow lanes”
2-23
“Left Narrow Lane”
2-24
“Right Narrow Lane”
2-25
“Approaching Narrow Bridge”
2-26
“Left lane ends”
2-27
“Right lane ends”
2-28
“Open Railroad Crossing”
2-29
“Secure Railroad Crossing”
2-30
“Railway crossing on next side road”
2-31
“Width Restriction”
2-31/1
“Width Restriction”
2-32
“Height Restriction”
2-32/1
“Height Restriction”
2-33
“Steep Climb”
2-34
“Steep Descent”
2-35
“Unequal Road Surface”
2-36
“Uneven Road Surface”
2-37
“Road Dip”
2-38 “Slippery When Wet”
2-39 “Loose Gravel”
2-40 “Falling rocks”
2-41 “Moveable Bridge Ahead”
2-42
“Shift to left carriageway”
2-43
“Shift to right carriageway”
2-44
“Added lane ahead”
2-45
“Added lane ahead”
2-46
“Merge-Left”
2-47
“Merge-Right”
2-48
“Divided Highway Begins”
2-49
“Divided Highway Ends”
2-50
“Right hairpin curve road”
2-51
“Left hairpin curve road”
2-52
“Two Way Traffic”
2-53
“Traffic Light Ahead”
2-54
“Stop Ahead”
2-54/1
“Stop Ahead”
2-55
“Give way ahead”
2-55/1
“Give way ahead”
2-56
“Pedestrian Crossing”
2-57
“School Crossing”
2-58
“Beware of Cattle”
2-59
“Low-flying aircraft”
2-60
“Danger”
2-60/1
“Danger”
2-62
“Double Arrow”
2-75
“T-junction ahead”
2-61
“No Passing Zone”
75 x 100 cm.
2-64
“Curve marker”
35 x 98 cm.

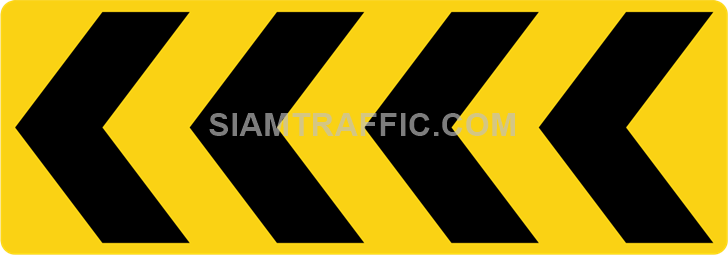

2-67
“Curve marker”
35 x 98 cm.
2-69
“Curve marker”
35 x 148 cm.
2-65
“One Direction Arrow”
60 x 120 /
90 x 180 cm.
2-68
“One Direction Arrow”
60 x 120 /
90 x 180 cm.
2-70
“Two Direction Arrow”
60 x 120 /
90 x 180 cm.
2-63
“Chevron Sign”
60 x 75 cm.
2-66
“Chevron Sign”
60 x 75 cm.
2-71 “Hazard marker”
45 x 75 cm.
2-72 “Hazard marker”
60 x 75 cm.
2-73 “Hazard marker”
60 x 75 cm.
2-74
“Zipper merge”
90 x 110 cm.
2-74/1
“Zipper merge”
90 x 125 cm.
Supplementary warning sign
Additional signs are used together with warning signs to elaborate meaning, limit and length of the way ahead.
“Traffic Light Ahead”
75 x 60 /
90 x 60 cm.
“Traffic Light — Meter Ahead”
60 x 50 /
75 x 60 cm.
“Beware of Right Traffic”
60 x 50 /
75 x 60 cm.
“Beware of Left Traffic”
60 x 50 /
75 x 60 cm.
“Speed Hump”
60 x 50 /
75 x 60 cm.
“Uneven road surface ahead for — Km”
75 x 60 /
90 x 60 cm.
“Two Way Traffic”
60 x 50 /
75 x 60 cm.
“Up Hill — Km”
60 x 50 /
75 x 60 cm.
“Down Hill — Km”
60 x 50 /
75 x 60 cm.
“Use Low Gear”
60 x 50 /
75 x 60 cm.
“Winding Road”
75 x 60 /
90 x 60 cm.
“Slippery When Wet”
60 x 50 /
75 x 60 cm.
“School Zone”
60 x 50 /
30 x 50 /
40 x 60 /
75 x 60 cm.
“Accident Ahead”
80 x 120 cm.
“Use Low Gear”
60 x 120 cm.
“City Limit Reduce Speed”
75 x 120 cm.
“City Limit Reduce Speed”
150 x 180 cm.
“Advisory speed limit”
60 x 120 cm.
“Advisory speed limit”
45 x 45 /
60 x 60 cm.
“U-turn Ahead”
60 x 100 cm.
Construction signs
Standard sizes of the Construction signs 2.1-1 to 2.1-24 are 60 x 60, 75 x 75 and 90 x 90 centimeter.
2.1-1
“Survey”
2.1-2
“Construction”
2.1-3
“Road Work”
2.1-4
“Machine Working”
2.1-5
“Road Diversion Left”
2.1-6
“Road Diversion Right”
2.1-7
“Diverted traffic to left”
2.1-8
“Diverted traffic to right”
2.1-9
“Diverted traffic to left (two lanes)”
2.1-10
“Diverted traffic to right (two lanes)”
2.1-11
“Diverted traffic (one lane on left)”
2.1-12
“Diverted traffic (one lane on right)”
2.1-13
“Diverted traffic, first to left”
2.1-14
“Diverted traffic, first to right”
2.1-15
“Diverted traffic, first to left, 2 lanes”
2.1-16
“Diverted traffic, first to right, 2 lanes”
2.1-17
“Diverted traffic, first to left, 3 lanes”
2.1-18
“Diverted traffic, first to right, 3 lanes”
2.1-19
“End of left lane (form 1 lane)”
2.1-20
“End of right lane (form 1 lane)”
2.1-25
“Curve marker”
Construction sign
2.1-25 and 2.1-26
60 x 120 cm.
2.1-26
“Curve marker”
Source: Wikipedia
Warning sign clients
Traffic sign manufactured by newly and highly quality zinc, aluminium, metal, paint and reflective sticker.
