3M Scotchlite high intensity grade reflective sheeting with conformable aluminium

  • Reflection coefficient 250 CPL.
  • Reflective sheeting has a conformable aluminium backing with an aggressive pressure sensitive adhesive.
  • It is designed for manual application to moderately rough or porous metal, wood or masonry surface.
  • Visible while raining.

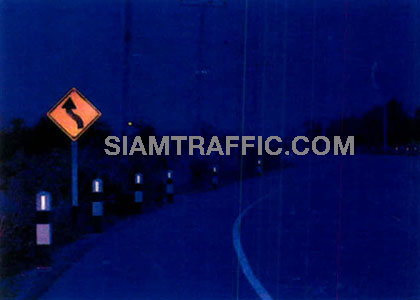

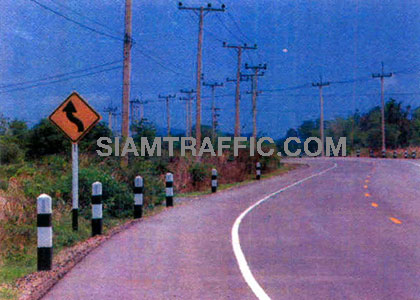

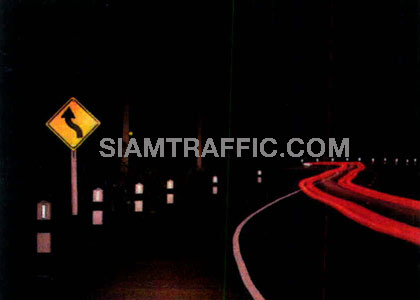

3M Scotchlite High intensity Grade Reflective Sheeting Series 7930With Conformable Aluminium Foil Backing : Day Time 3M Scotchlite High intensity Grade Reflective Sheeting Series 7930 With Conformable Aluminium Foil Backing : Evening Time 3M Scotchlite High Intensity Grade Reflective Sheeting Series 7930 : Night Time
3M Scotchlite Conformable
Properties : Reflective sheeing with conformable aluminium foil backing.
It has transparent plastic cover the adhesive.
Colour : Silver code 7930
(Reflection confficient 250 CPL)
Purpose use : Electricity pole, guardrail
Composition : 2 parts
1. Reflective sheeting (High Intensity Grade)
2. Primer No.4448
Suitable for : All surface including concrete,wood,metal,glass

How to install 3M Scotchlite High Intensity Grade Reflective Sheeting Series 7930 With Conformable Aluminium Foil Backing.

  1. Smooth non-porous surfaces are to be wiped clean with dry cloth prior to manual application of sheeting.

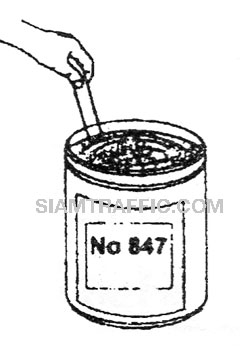

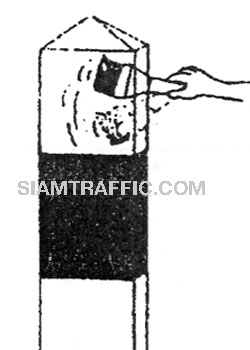

  2. Rough or porous surfaces require cleaning and application of primer to fill voids prior to manual application of sheeting. Use primer adhesive No. 4448 and apply with brush or paint roller (may require more than one coat).
  3. Allow adhesive to dry to touch (2-3 minutes).

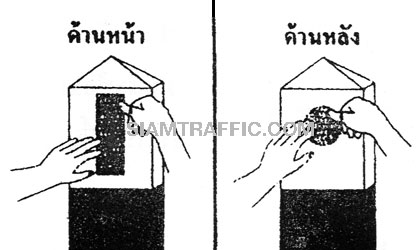

  4. Once positioned, remove the cover plastic, firmly adhere the sheeting to the surface.

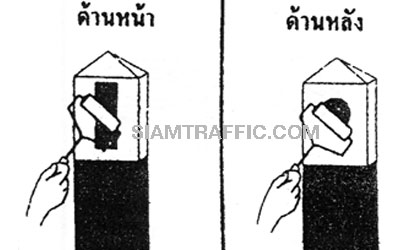

  5. Roll the reflective sheeting by using rubber roller.

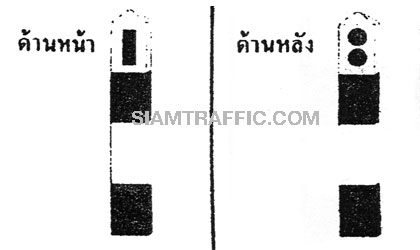

The installation of 3M scotchlite high intensity grade reflective sheeting series 7930

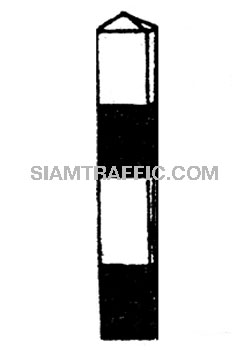

วิธีการติดตั้ง 3 เอ็ม แผ่นสะท้อนแสงสก๊อตช์ไลท์ คอนฟอร์มเมเบิ้ล รุ่น 7930 : พื้นผิวที่ต้องการติดแผ่นสะท้อนแสง
1

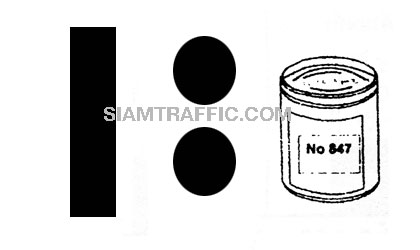

วิธีการติดตั้ง 3 เอ็ม แผ่นสะท้อนแสงสก๊อตช์ไลท์ คอนฟอร์มเมเบิ้ล รุ่น 7930 : เตรียมแผ่นสะท้อนแสงคอนฟอร์มเมเบิ้ล และน้ำยารองพื้นไพรเมอร์เบอร์ 4448
2
วิธีการติดตั้ง 3 เอ็ม แผ่นสะท้อนแสงสก๊อตช์ไลท์ คอนฟอร์มเมเบิ้ล รุ่น 7930 : ทำความสะอาดพื้นผิวที่ต้องการติดแผ่นคอนฟอร์มเมเบิ้ลด้วยแปรงหรือผ้า
3
วิธีการติดตั้ง 3 เอ็ม แผ่นสะท้อนแสงสก๊อตช์ไลท์ คอนฟอร์มเมเบิ้ล รุ่น 7930 : ใช้น้ำยารองพื้นไพรเมอร์เมอร์ 4448
4

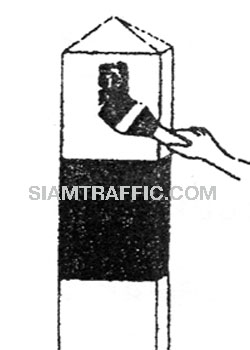

วิธีการติดตั้ง 3 เอ็ม แผ่นสะท้อนแสงสก๊อตช์ไลท์ คอนฟอร์มเมเบิ้ล รุ่น 7930 : ทาพื้นผิวที่ต้องการติดให้ทั่วด้วยน้ำยารองพื้นเบอร์ 4448 ถ้าพื้นผิวหยาบมาก อาจจะต้องทาทับหลายๆ เที่ยว
5

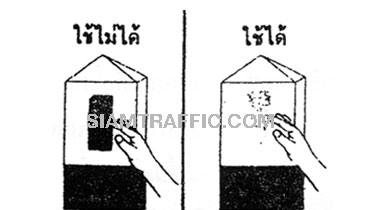

วิธีการติดตั้ง 3 เอ็ม แผ่นสะท้อนแสงสก๊อตช์ไลท์ คอนฟอร์มเมเบิ้ล รุ่น 7930 : ทิ้งไว้ให้น้ำยารองพื้นไพรเบอร์เริ่มแห้ง (ประมาณ 2-3 นาที) โดยสังเกตจากเมื่อใช้นิ้วมือสัมผัส จะไม่เหนียวติดมือ
6

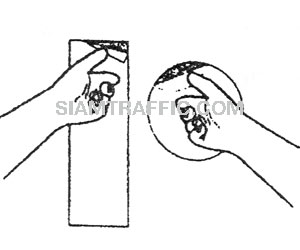

วิธีการติดตั้ง 3 เอ็ม แผ่นสะท้อนแสงสก๊อตช์ไลท์ คอนฟอร์มเมเบิ้ล รุ่น 7930 : ลอกพลาสติกใสด้านหลังแผ่นสะท้อนแสงคอนฟอร์มเมเบิ้ลออก
7
วิธีการติดตั้ง 3 เอ็ม แผ่นสะท้อนแสงสก๊อตช์ไลท์ คอนฟอร์มเมเบิ้ล รุ่น 7930 : ติดแผ่นสะท้อนแสงคอนฟอร์มเมเบิ้ลลงบนพื้นผิวที่ทาน้ำยารองพื้นไว้
8
วิธีการติดตั้ง 3 เอ็ม แผ่นสะท้อนแสงสก๊อตช์ไลท์ คอนฟอร์มเมเบิ้ล รุ่น 7930 : รีดแผ่นสะท้อนแสงให้ติดแน่นทั่วทั้งแผ่นด้วยลูกกลิ้งยาง
9
3M Scotchlite High Intensity Grade Reflective Sheeting Series 7930 With Conformable Aluminium Foil Backing
10
